灯具标准指令下发示例及说明
code名称 数据类型 取值约束说明
switch_led开关Boolean{}
work_mode模式Enum{“range”:[“white”,“colour”,“scene”,“music”,“scene_1”,“scene_2”,“scene_3”,“scene_4”]}
bright_value亮度Integer{“min”:25,“scale”:0,“unit”:"",“max”:255,“step”:1}
bright_value_v2亮度Integer{“min”:10,“scale”:0,“unit”:"",“max”:1000,“step”:1}
temp_value冷暖Integer{“min”:0,“scale”:0,“unit”:"",“max”:255,“step”:1}
temp_value_v2冷暖Integer{“min”:0,“scale”:0,“unit”:"",“max”:1000,“step”:1}
colour_data彩光模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”]}
colour_data_v2彩光模式Json{“h”:[“0-360”],“s”:[“0-1000”],“v”:[“0-1000”]}
scene_data情景模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”]}
scene_data_v2情景模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”]}
flash_scene_1柔光模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”],“temperature”:[“0-255”],“bright”:[“0-255”],“frequency”:[“0-255”]}
flash_scene_2缤纷模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”],“temperature”:[“0-255”],“bright”:[“0-255”],“frequency”:[“0-255”]}
flash_scene_3炫彩模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”],“temperature”:[“0-255”],“bright”:[“0-255”],“frequency”:[“0-255”]}
flash_scene_4斑斓模式Json{“h”:[“0-360”],“s”:[“0-255”],“v”:[“0-255”],“temperature”:[“0-255”],“bright”:[“0-255”],“frequency”:[“0-255”]}
music_data音乐灯模式控制Json见说明
control_data调节dp控制Json见说明
countdown_1倒计时Integer{“unit”:"",“min”:0,“max”:86400,“scale”:0,“step”:1}
scene_select场景选择Enum{“range”:[“1”,“2”,“3”,“4”,“5”]}
switch_health_read健康阅读开关Boolean{}
read_time健康阅读-阅读时间设置Integer{“unit”:“minute”,“min”:1,“max”:60,“scale”:0,“step”:1}
rest_time健康阅读-休息时间设置Integer{“unit”:“minute”,“min”:1,“max”:60,“scale”:0,“step”:1}

switch_led

true:打开灯具电源开关
false:关闭灯具电源开关

{
    "commands":[
        {
            "code":"switch_led",
            "value":true
        }
    ]
}

work_mode

设置灯具的颜色模式，这里是一些预定义的灯具颜色模式。具体的产品支持具体的模式设置。
"white":白色
"colour":彩色
"scene":预定义颜色
"music":预定义颜色
"scene_1":预定义颜色
"scene_2":预定义颜色
"scene_3":预定义颜色
"scene_4":预定义颜色

{
    "commands":[
        {
            "code":"work_mode",
            "value":"white"
        }
    ]
}

bright_value

调节灯具亮度
取值范围:[25-255]

{
    "commands":[
        {
            "code":"bright_value",
            "value":120
        }
    ]
}

bright_value_v2

调节灯具亮度
取值范围:[10-1000]

{
    "commands":[
        {
            "code":"bright_value_v2",
            "value":990
        }
    ]
}

temp_value

调节灯具色温(冷暖)
取值范围:[0-255]

{
    "commands":[
        {
            "code":"temp_value",
            "value":120
        }
    ]
}

temp_value_v2

调节灯具色温(冷暖)
取值范围:[0-1000]

{
    "commands":[
        {
            "code":"temp_value_v2",
            "value":990
        }
    ]
}

colour_data

以hsv的形式控制灯具的颜色变化。
h [0-360]
s [0-255]
v [0-255]

{
    "commands":[
        {
            "code":"colour_data",
            "value":{
                "h":37,
                "s":255,
                "v":188
            }
        }
    ]
}

colour_data_v2

以hsv的形式控制灯具的颜色变化。
h [0-360]
s [0-1000]
v [0-1000]
下发格式示例:
{
    "commands":[
        {
            "code":"colour_data_v2",
            "value":{
                "h":201,
                "s":511,
                "v":899
            }
        }
    ]
}

scene_data

以hsv的形式控制灯具的颜色变化。
h [0-360]
s [0-255]
v [0-255]

{
    "commands":[
        {
            "code":"scene_data",
            "value":{
                "h":37,
                "s":255,
                "v":188
            }
        }
    ]
}

scene_data_v2

一种DIY形式控制灯具的颜色变化，部分灯具产品支持这种控制。
scene_num: [1-8] 情景模式数选择

unit_change_mode: ["static","jump","gradient"] 单元变化模式。分别表示："静态"，"跳变"，"渐变"

unit_switch_duration:[0-100] 单元切换时长。单位秒

unit_gradient_duration:[0-100] 单元渐变时长。单位秒

bright:[0-1000] 亮度

temperature:[0-1000] 色温

h: [0-360]

s: [0-1000]

v: [0-1000]


{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":5,
                "scene_units":[
                    {
                        "unit_change_mode":"static",
                        "unit_switch_duration":20,
                        "unit_gradient_duration":20,
                        "h":201,
                        "s":611,
                        "v":999,
                        "bright":500,
                        "temperature":800
                    }
                ]
            }
        }
    ]
}

music_data

一种DIY形式控制灯具的颜色变化，部分灯具产品支持这种控制。
change_mode: ["direct","gradient"] 变色方式。分别表示："直接输出"，"渐变"

bright:[0-1000] 亮度

temperature:[0-1000] 色温

h: [0-360]

s: [0-1000]

v: [0-1000]

{
    "commands":[
        {
            "code":"music_data",
            "value":{
                "change_mode":"direct",
                "bright":500,
                "temperature":800,
                "h":201,
                "s":611,
                "v":999
            }
        }
    ]
}

control_data

一种DIY形式控制灯具的颜色变化，部分灯具产品支持这种控制。

change_mode: ["direct","gradient"] 变色方式。分别表示："直接输出"，"渐变"

bright:[0-1000] 亮度

temperature:[0-1000] 色温

h: [0-360]

s: [0-1000]

v: [0-1000]

{
    "commands":[
        {
            "code":"control_data",
            "value":{
                "change_mode":"direct",
                "bright":500,
                "temperature":800,
                "h":201,
                "s":611,
                "v":999
            }
        }
    ]
}

flash_scene_1

一种DIY形式控制灯具颜色变化，部分灯具产品支持这种控制。 flash_scene_2 ,flash_scene_3 ,flash_scene_4 传值方式与此相同。
bright 亮度，范围0-255；

temperature 色温（冷暖值），范围0-255；

frequency 频率，颜色之间切换时间长短的度量，值越大，颜色之间切换时间越长，范围1-255。

h [0-360]
s [0-255]
v [0-255]

{
    "commands":[
        {
            "code":"flash_scene_1",
            "value":{
                "bright":100,
                "frequency":76,
                "hsv":[
                    {
                        "h":210,
                        "s":169,
                        "v":146
                    }
                ],
                "temperature":84
            }
        }
    ]
}

countdown_1

倒计时设置,控制灯具的开关功能。部分灯具产品支持。
单位:秒(s)
取值范围:[0-86400]

{
    "commands":[
        {
            "code":"countdown_1",
            "value":1200
        }
    ]
}

scene_select

预定义的一些场景设置。部分灯具产品支持。
"1"：阅读
"2"：用电脑
"3"：小夜灯
"4"：休闲
"5"：调光

{
    "commands":[
        {
            "code":"scene_select",
            "value":"1"
        }
    ]
}

switch_health_read

健康阅读开关。部分灯具产品支持。
true:打开
false:关闭


{
    "commands":[
        {
            "code":"switch_health_read",
            "value":true
        }
    ]
}

read_time

阅读时间设置。部分灯具产品支持。
单位:分钟(minute)
范围:[1-60]


{
    "commands":[
        {
            "code":"read_time",
            "value":10
        }
    ]
}

rest_time

休息时间设置。部分灯具产品支持。
单位:分钟(minute)
范围:[1-60]


{
    "commands":[
        {
            "code":"rest_time",
            "value":20
        }
    ]
}

附录1

下面的示例是通过 scene_data 、flash_scene_1、flash_scene_2、flash_scene_3、flash_scene_4 来调节的一些模式:
一些常见的模式下发示例（涂鸦APP对灯具的一些模式设置，供参考）

{
    "commands":[
        {
            "code":"scene_data",
            "value":{
                "h":37,
                "s":255,
                "v":188
            }
        }
    ]
}



{
    "commands":[
        {
            "code":"scene_data",
            "value":{
                "h":38,
                "s":8,
                "v":255
            }
        }
    ]
}



{
    "commands":[
        {
            "code":"scene_data",
            "value":{
                "h":16,
                "s":255,
                "v":207
            }
        }
    ]
}



{
    "commands":[
        {
            "code":"scene_data",
            "value":{
                "h":226,
                "s":176,
                "v":181
            }
        }
    ]
}



{
    "commands":[
        {
            "code":"flash_scene_1",
            "value":{
                "bright":100,
                "frequency":76,
                "hsv":[
                    {
                        "h":210,
                        "s":169,
                        "v":146
                    }
                ],
                "temperature":84
            }
        }
    ]
}




{
    "commands":[
        {
            "code":"flash_scene_2",
            "value":{
                "bright":255,
                "frequency":80,
                "hsv":[
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":120,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":240,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    }
                ],
                "temperature":255
            }
        }
    ]
}


{
    "commands":[
        {
            "code":"flash_scene_3",
            "value":{
                "bright":100,
                "frequency":76,
                "hsv":[
                    {
                        "h":210,
                        "s":169,
                        "v":146
                    }
                ],
                "temperature":84
            }
        }
    ]
}



{
    "commands":[
        {
            "code":"flash_scene_4",
            "value":{
                "bright":255,
                "frequency":80,
                "hsv":[
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":120,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":240,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":300,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":240,
                        "s":255,
                        "v":255
                    },
                    {
                        "h":0,
                        "s":255,
                        "v":255
                    }
                ],
                "temperature":255
            }
        }
    ]
}

附录2

下面的示例是通过 scene_data_v2 来调节的一些模式:
一些常见的模式下发示例（涂鸦APP对灯具的一些模式设置，供参考）

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":1,
                "scene_units":[
                    {
                        "bright":200,
                        "h":46,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"static",
                        "unit_gradient_duration":13,
                        "unit_switch_duration":14,
                        "v":0
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":2,
                "scene_units":[
                    {
                        "bright":1000,
                        "h":132,
                        "s":0,
                        "temperature":500,
                        "unit_change_mode":"static",
                        "unit_gradient_duration":13,
                        "unit_switch_duration":14,
                        "v":0
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":3,
                "scene_units":[
                    {
                        "bright":1000,
                        "h":232,
                        "s":899,
                        "temperature":1000,
                        "unit_change_mode":"static",
                        "unit_gradient_duration":13,
                        "unit_switch_duration":14,
                        "v":0
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":4,
                "scene_units":[
                    {
                        "bright":500,
                        "h":20,
                        "s":1000,
                        "temperature":500,
                        "unit_change_mode":"static",
                        "unit_gradient_duration":13,
                        "unit_switch_duration":14,
                        "v":0
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":5,
                "scene_units":[
                    {
                        "bright":0,
                        "h":120,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":120,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":10
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":6,
                "scene_units":[
                    {
                        "bright":0,
                        "h":0,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"jump",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":120,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"jump",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":240,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"jump",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":7,
                "scene_units":[
                    {
                        "bright":0,
                        "h":0,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"jump",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":120,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"jump",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    }
                ]
            }
        }
    ]
}

{
    "commands":[
        {
            "code":"scene_data_v2",
            "value":{
                "scene_num":8,
                "scene_units":[
                    {
                        "bright":0,
                        "h":0,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":120,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":240,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":61,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":174,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    },
                    {
                        "bright":0,
                        "h":275,
                        "s":1000,
                        "temperature":0,
                        "unit_change_mode":"gradient",
                        "unit_gradient_duration":70,
                        "unit_switch_duration":70,
                        "v":1000
                    }
                ]
            }
        }
    ]
}

附录3：rgb和hsv如何相互转换?

转换示例链接:

https://www.rapidtables.com/convert/color/index.html

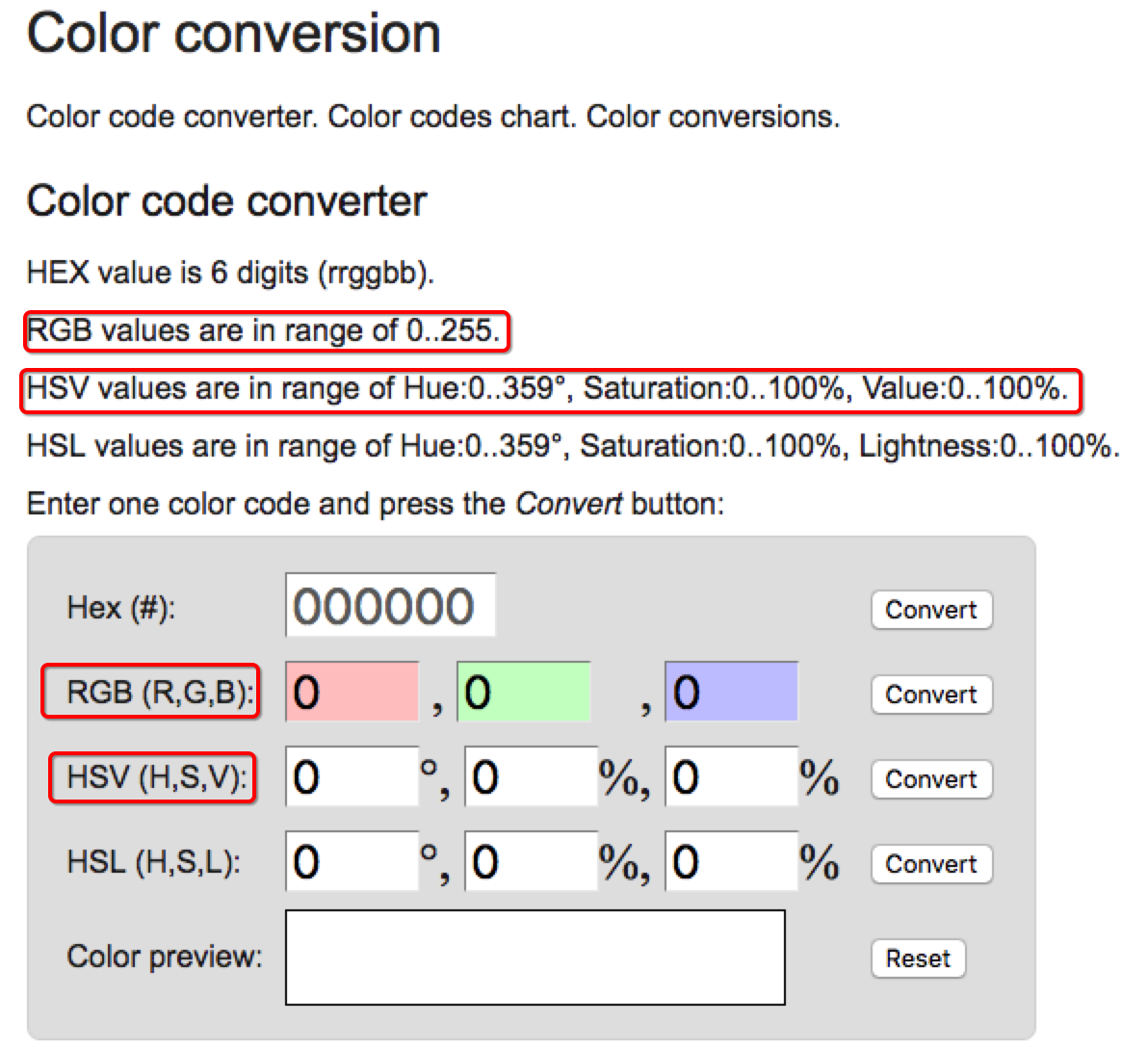

转换图示:

附录4：下发数据类型,数据传输类型,取值约束解释

数据类型：

  1. 布尔型（Boolean）：非真即假的二值型变量。如：开关功能，开/关;
  2. 数值型（Integer）：适用于可线性调节类型的数据。如：温度调节，温度范围20-40℃;
  3. 枚举型（Enum）：有限集合值。如：工作档位，低档/中档/高档;
  4. 字符串型（String）：以字符串形式下发值;
  5. 对象类型（Json）:下发的值是一个对象的json格式，会有对应对象属性说明解释。

数据传输类型：

  1. 可下发，可上报：指令数据可以下发给设备，设备数据可以上报给云端；
  2. 只上报：数据只支持从设备上报；
  3. 只下发：数据只支持从云端下发。

数据取值约束解释

1 Integer 类型示例格式：
{"min":11,"unit":"s","scale":0,"max":86400,"step":1}
解释：
min:最小取值。示例为：11 max:最大取直。示例为：86400 unit:数值的单位。示例为：s scale:数据将以10的指数转换进行传输。示例为：0 表示，乘以10的0次方，即为1。 step:数据增量间距（即‘步长’）。示例为：1
2 String 类型示例格式：
{"maxlen":255}
解释： maxlen:值最大长度。示例为255。
3 Enum 类型示例格式：
{"range":["1","2","3","4","5"]}
解释： range:枚举取值限定范围。示例为：“1”,“2”,“3”,“4”,“5”。
4 Json 类型查看附录对应对象属性说明。
5 Boolean 下发布尔类型值即可。
